Environmental Materia Prefabricated Light Gauge Steel Villa House Framing Machine for Villa

Product Description

Roll forming machine

Dimension: 4800x1200x700mm

Weight: 3 T

Colour: Customized

Main motor: 7.5 KW Servo motor, Taiwan Delta

Transmission: Gear transmission + chain drive

Forming Mould: Cr12Mov After CNC machining, vacuum heat treatment to HRC56-62

Main axis: 40Cr Heat treatment after NC machining to HRC28-32, then polishing, polishing and electroplating.

Speed: 40m/min(without punching and cutting)

Production capacity : 6-8 tons/h (Overall speed to make the whole house)

Tolerance: punching and cutting: ± 0.5mm

forming: ±0.75mm

Detail Tools of C89 light guage steel framing machine
(1).Lip Notch;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;

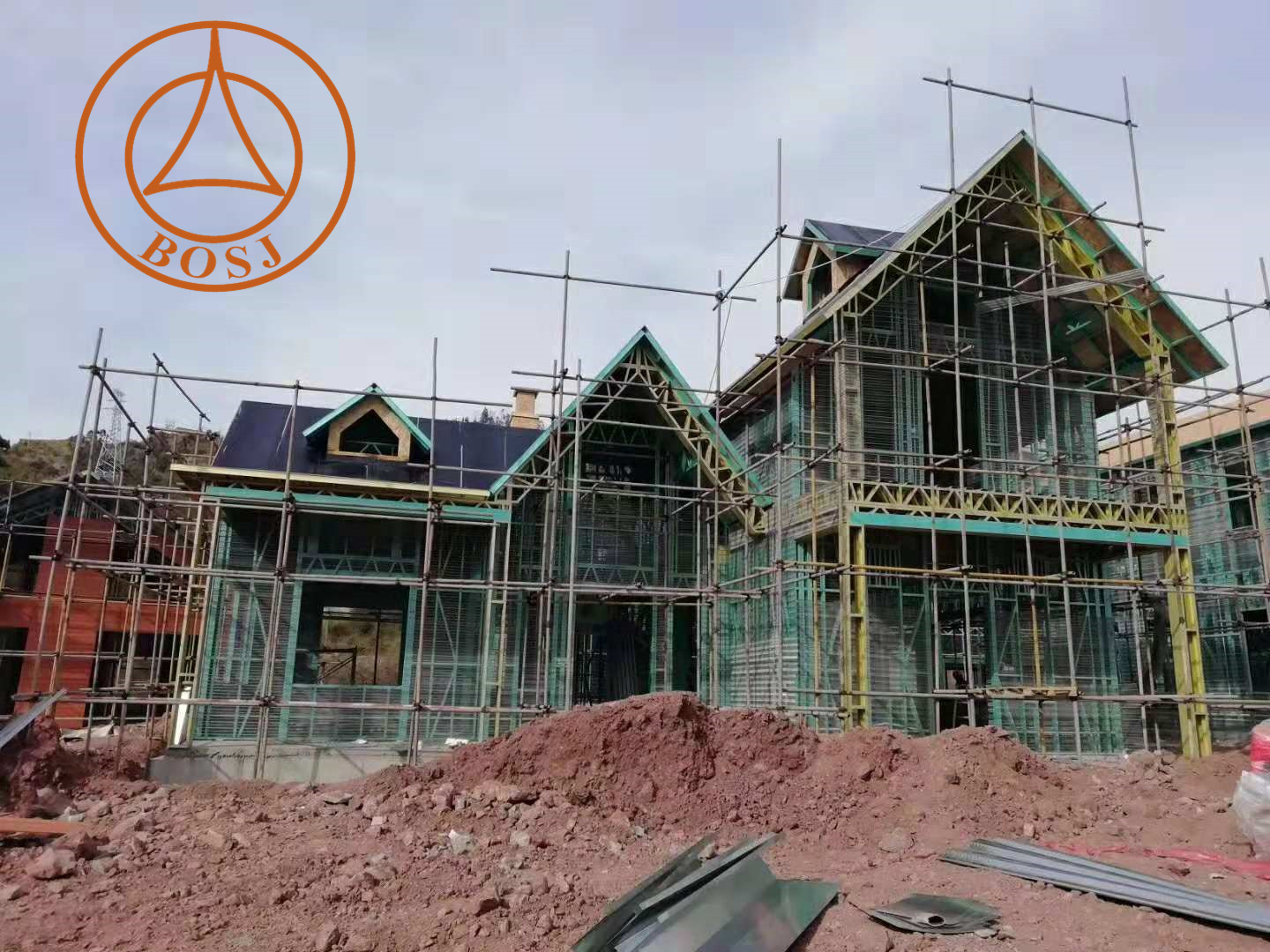

How to Install

1. Assemble light steel keels piece by piece(according to numbers and drawings)

2. Combined all parts together(chassis, wall, floor beam, roof, etc)

3. Install the exterior wall

4. Complete the windows, doors and cornice with trim and flashing

5. Fix the exterior corner

• Smart Internet connectivity provides cloud-based data reporting to enable real time production management and technical diagnostics to improve efficiency.
• Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists.
• An auto gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 0.6 -1.2 mm.

  ---

Vertex BD Software

​

• Create frame work 3D map and 3D decoration view
• With analysis project function, the software can calculate bearing capacity
• Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material
• Permanent use without updating or upgrading

Prefabricated Lightweight Steel Truss Frames all different shapes and sizes heading out the door!

Get in touch with us today to see how we can help on your next project.

Thank you for your attention!
You can send your inquiry details in the below,

Click “Send” Now !

JIANGYIN BOSJ SCIENCE & TECHNOLOGY CO., LTD located in the Yangtz e Rive r Delta and the famous "China's first village" Jiangyin Huaxi Village. It is a professional manufacturer specializing in the developing and export of roll forming machine for metal roof tiles, wall sheets, C-shaped puline, Z-shaped purline, press brakes, highway guardrail and CNC plasma cutting machine. BOSJ has developed machinery and production methods to meet customers' increasing demand for profitability and new business opportunities.


BOSJ has a group of experienced senior engineers, technicians, they were from machinery, automatic control, power electronics, and other fields, and skilled workers ensure high quality products for customers with perfect quality management and testing systems. We're always able to meet your customized needs. From basic economical roll formers to the most complex, we fashion a solution to meet your company's production goals and budgets.


In line with enterprising spirit on 'sincerity originally" company, use CAD/CAM electromechanics integrated technology, in a conscientious and down-to-earth manner to devoted to new product new industrial research and development of new technology, it is accurate to regard time of fighting in time of price that the high-quality products are reasonable as, loyal service is very domestic and international every user.


Our products cover more than 20 provinces and cities in China and are also exported to Southeast Asia, the Middle East, African regions and North America.
