    Automatic China Galvanized Perforated Steel Cable Tray Management Roll Forming Production Machine

    Automatic China Galvanized Perforated Steel Cable Tray Management Roll Forming Production Machine


    Cable Tray Production Machine Main devices

    a. Hydraulic decoiler
    b. Main roll forming machine
    c. Hydraulic shearing machine
    d. Hydraulic station
    e. Digital control cabinet


    A. Hydraulic decoiler
    Welded channel steel & steel plate frame
    Hydraulic adjust screw shaft to make four arch leaves expand in sync Expansion range: φ460~φ520mm,
    maximum loading weight: 3tons
    Mechanical drag brake

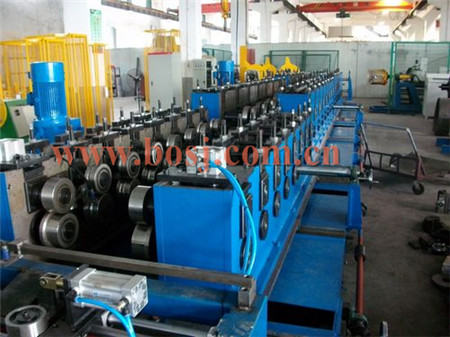

    B. Main roll forming machine
    Welded section steel base, both sides are made of steel plate
    Embossing rollers are made of Cr12, vacuum heat treated for HCR58~62.
    Pressing rollers are made of 40Cr round steel, diameter at φ100mm, tempering and quenching treatment; 12 groups forming rollers; chain transmission
    Pressing rollers are made of GCr15, outer diameter at φ160mm, after precision lathing for vacuum heat treated to hardness HRC55~58.
    Driven by 15KW motor, 35 speed ratio cyciol pin gearbox, inverter control, speed adjustment range: 0~20m/min.

    C. Hydraulic shearing machine
    Welded steel plate frame
    Blade’s material: forged Cr12MoV, rough lathing and heat treatment to hardness at HRC58~62, high precision grinding, linear cutting and etc.
    With hydraulic cylinder at φ250x50mm, one set, maximum shear force at 80tons.


    D. Hydraulic station
    Hydraulic driving motor: 15KW; gear hydraulic pump: 16Mpa, volume: 16ml/r, rotary speed: 1500r/min, with air cooling system


    E. Digital control operation cabinet
    Inverter control for saving energy for user
    Stable control; Innovance PLC; LCD screen display

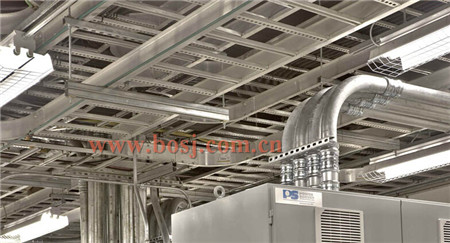

    Roll Forming Machine Product Feature:


    They are all widely used in steel structure industry, decorating and fitting material industry,

    physical

    distribution and supermarket shelf industry, transportation industry, wiring industry, electrical

    equipment industry, elevator industry and various projects using pipe industry.


    Roll Forming Machine Components:


    Roll forming machine consists of Uncoiler, guiding&leveling, Main roll forming system, hydraulic

    cutting ,

    Hydraulic station, PLC control system and output table.


    Optional with Hydraulic Decoiler, Auto Stacker,Safe Cover,Pre-Cutting, Film Covering Device,

    and so on.



    Machine Parameter

    NO.ProjectUnitParameterRemark

    1
    MaterialTypeHigh strength steel
    Strength of material sheetMap≥350
    Thickness of material sheetmm1.2~2.0
    2Size of productionmm
    Reference the picture
    3Production speedm/minPunching speed 4m/min
    Forming speed 10m/min
    4Material of rollerGCr15 quenching treatment
    5Drive typeGear
    6PowerkwAbout 75
    7Electric control systemPLC variable frequency control
    8Dimensions(Length*width*height)m55X4X3.9
