1. Matching material: Galvanized or PPGI

2. Material thickness range: 0.8-2mm

3. Forming speed: 8-15m/min(include the punching and cutting time)

5. hydraulic station power: 22KW

6. Quantity of roller:20

7. Shaft Material and diameter: 80 mm, material is 40CR

8. Material Of the Body:400H steel. Wall Panel;20mm Q195 steel(all with electrostatic spraying)

9. Tolerance: +-1.5mm

11. Controlling system: PLC

12. Total weight: about 5 Tons

13. Voltage: 380V/ 3phase/ 50 Hz

14. Size of the machine: L*W*H 23m*1.5m*1.2m

15. Material of forming rollers: Gcr 15/Cr12, coated with chromed treatment(you can choose the material as your request)

16. Material of cutter blade: Cr 12 mould steel with quenched treatment 58-62℃

17. Tempreture:60

3,Each part major technical parameters

3.1 Drive decoiler

Material width:860mm

Material weight:6000kg

Material inner diameter:508mm

Material outer diameter:1200mm

Drive power: electromotor and speed reducer integration, 4KW frequency conversion electromotor

Frame type: cantalever inner support, manual handle afterbody, pneumatic press cantalever.

3.2 Flatting

Working rolls: 11 rolls, up 4/down 5, the residual 2 rolls is clamp deliver rolls.

Flatting bound: material thickness 12mm, material width 100860mm

Drive power: 5.5kw frequency conversion electromotor

Speed reducer model: ZQ250

flatting speed:310 m/min

Parenthesis up and down a pair of fortified wheel

3.3 Continual punching mould

Amount: Each kind of width specification 1 set dies, total 6 sets

Die require: Cr12 quench
It finishes punching and cutting in one time.

3.4 Servo feeding Device

Servo electromotor power: 4.4kw

Multistage type feeding, memory ten group of memory functions

Man-machine contact surface numerical control system

Uses Mitsubishi servometer

3.5 Holds material (use in cushion section)

The roller type, the both sides have the bearing support, 3 sets, use in holding the material and under the deposited material spacing.

3.6 Guider

A pair of horizontal roller and two pairs of vertical guide rolls, total 1 sets.

3.7 Main roll forming machine

Type: GY180(Extra wide)

Rack structure:Dragon Gate type memorial arch frame

forming frame: 22 sets

Forming variety: bridge frame

material max width:860mm

material max thickness:≤2.0mm

forming width: 75-600mm

forming height: 50-100mm

The diameter of the roller axis: 85mm

Roll mould material: Gcr15,quenching treatment:HRC58-62°

Drive type:30kw frequency conversion electromotor, ZQ500 Main speed reducer

Autocephaly distribute gear case

3.8 Electrical control

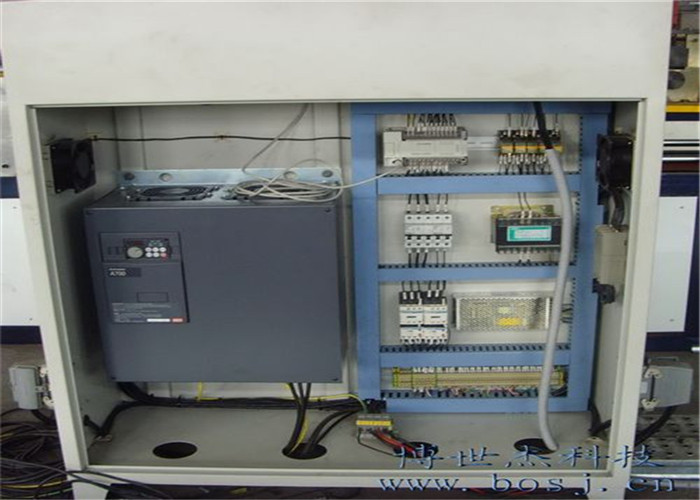

3.8.1 Main operation control cubicle

Amount: 1 set

Frequency conversion: 3sets(in main control cubicle, control decoiler, flatting and roll forming machine)

PLC control: 1 set

8 inch liquid crystal touchscreens

All electrical element is the Mitsubishi original installation brand

3.9.2 Assistant control cubicle

Amount: 3 sets (follow decoiler, flatting, roll forming machine)

Control styp: manual handle

4, Produce condition

capability: about 71.5kw

gas fountain: 0.9 cube/min

Production land area: 33m*3m

5,Machine Parameter

6.Cable Tray Profile

JIANGYIN BOSJ SCIENCE & TECHNOLOGY CO., LTD located in the Yangtz e Rive r Delta and the famous "China's first village" Jiangyin Huaxi Village. It is a professional manufacturer specializing in the developing and export of roll forming machine for metal roof tiles, wall sheets, C-shaped puline, Z-shaped purline, press brakes, highway guardrail and CNC plasma cutting machine. BOSJ has developed machinery and production methods to meet customers' increasing demand for profitability and new business opportunities.


BOSJ has a group of experienced senior engineers, technicians, they were from machinery, automatic control, power electronics, and other fields, and skilled workers ensure high quality products for customers with perfect quality management and testing systems. We're always able to meet your customized needs. From basic economical roll formers to the most complex, we fashion a solution to meet your company's production goals and budgets.


In line with enterprising spirit on 'sincerity originally" company, use CAD/CAM electromechanics integrated technology, in a conscientious and down-to-earth manner to devoted to new product new industrial research and development of new technology, it is accurate to regard time of fighting in time of price that the high-quality products are reasonable as, loyal service is very domestic and international every user.


Our products cover more than 20 provinces and cities in China and are also exported to Southeast Asia, the Middle East, African regions and North America.
