    Low Noise Shutter Roll Forming Machine , DC24V Rolling Shutter Making Machine

    Ask Lasest Price
    Brand Name : BOSJ
    Model Number : BOSJ-F
    Certification : ISO,CE,SGS
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T
    Supply Ability : 2 sets per month
    Delivery Time : 50 days
    • Product Details
    • Company Profile

    Low Noise Shutter Roll Forming Machine , DC24V Rolling Shutter Making Machine

    HVAC System Fire Frame Roll forming Line production


    By formula programmed, different sizes and different quantities can be set in one time. Also, different holes distances can be set to assemble different sizes of blades.

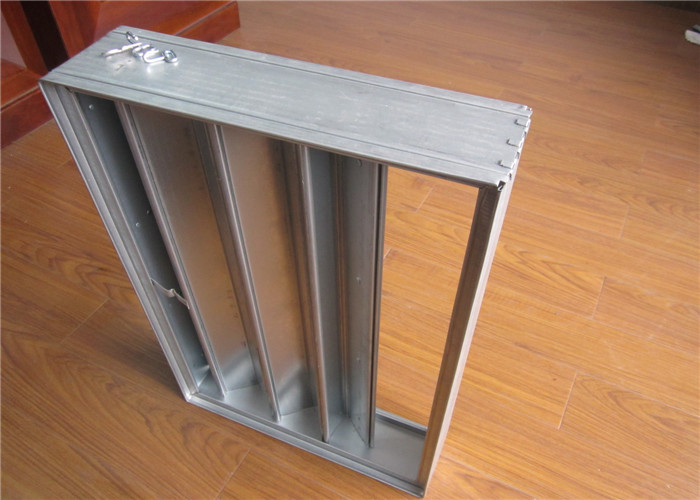

    The Fire damper frame manufacture auto line can fabricate two kinds of frames, newlly designed hand fold integrated frame and TDF corner fastened frame. Two kinds of frames to be fabricated in one machine, reaching different requirements.

    Damper blade auto line makes BLADE for damper blade easier!

    FIRE DAMPER BLADE FORMING MACHINE ROLL FORMING MACHINE PUNCHING CUTTING ROLLING VCD SQUARE SHAFT


    With 15 sets of roller stations, it can process material of 1.0-1.5mm thickness. Combine with a decoiler, cutting and punching unit, an auto line can be provided for three different sizes of blades with different coil width.


    We can also manufacture the machine based on the blade profile as customers require.



    Character of main structure


    a) The structure is simple and the appearance of the machine is beautiful because we adopt

    the shape-steel structure and most of the connecter is screw which make the machine

    flexible and stronger.

    b) All the components of machine are from brand-famous enterprise so that they ensure the

    machine normal function very effectively.

    c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be

    precise and the finished product clear without deforming.

    d) It is very easy to install the equipment and suitable for producing in the factory.

    e) Low noise with high efficiency


    1, Production Forming process

    De-coiler—servo feeding—gap and cut off mould—forming ---collection table


    2, Equipment composing parts

    Equipment is composed of de-coiler ,feed system ,gap and cut off , forming machine,collection table ,electric control system , etc.

    Thickness: 1.5-2.0mm

    Coil Width: 276mm

    Damper Body Width: 200mm

    Speed: 12m/min

    Minimum Damper Dimention: 80mmx80mm

    Decoiler Capercity: 1.5ton

    Space: 20000*1200*1300(L*W*H)


    Main structure and performance of machine


    Technical Parameter


    ItemsSpecifications
    Material of coilMaterial Thickness1.5 mm galvanized coils
    Un Coiler3 tons manual
    Forming systemRolling SpeedAbout 10m/min
    Roller StationsAbout 16 stations
    Roller Material

    Gcr15 coated with chrome


    Shaft diameter65mm
    Maim Motor Power11kw
    Pinching motor2.2kw
    Motor cutting Power7.5kw
    Cutting systemMaterial Of CuttingCR12mov with quench treatment
    HardnessHRC58-62
    Tolerance+-1.5mm
    Cutting blades3 sets
    Electrical control systemElectric Source

    380V, 50HZ,3 phase

    Also can satisfy Customer’s requirey

    Control SystemPLC
    WeightAbout 8 tons
    Way Of Drive1.2 inch chain

    Roll forming production scope
    This rollforming machine can be make the thickness from 0.8mm to 1.2mm
    Parameters of main equipment:


    1 - De-coiler
    Material width: ≤ 250 mm, Material thickness≤ 2.0mm;
    Inner diameter: 480-520 mm;
    Outer diamete: φ 1200mm;
    Max. Load capacity: ≤ 2T


    2 - Leveling system
    Use 9 roller leveling,
    Power 2.2 kW,
    Speed: 10M/min


    3 - Servo feeding system
    BNC-30Technical parameters:
    BNC-300
    The feed shaft diameter: φ 60mm
    Measuring diameter of shaft: φ 60mm
    Maximum feed plate of width: ≤ 300mm
    Maximum feed plate of thickness: ≤ 2.5mm
    Maximum feed speed: ≤ 40m/min
    Feeding and blanking step length tolerance: ± 0.20mm
    Feed products overall length tolerance: ± 0.25mm
    Servo motor power/brand: 1.3KW/Japan Yaskawa
    TransmissionSynchronous wheel / gear
    Length measuring encoder: ROUNDSS 2500P


    Main Forming Machine

    • Feeding: power 0.37kw
    • Forming machine
    • Forming frame
    • Material of forming mould: GCr15, quenching treatment: rigidity: HRC56-62º
    • Motor: 7.5kw frequency conversion engine
    • Electric control: PLC system

    NO.

    Project

    Unit

    parameters

    Remark

    1

    Material
    typeMild steel Galvanized sheet
    Strength of material sheetMap≥350
    Thickness of material sheetmm0.8~1.5
    2Size of productionmm
    Reference the picture
    3Production speedm/min6~8
    4Material of rollerGCr quenching treatment
    5Drive typeGear box
    6PowerkwAbout 34
    7Electric control systemPLC variable frequency control
    8Dimensions(Length*width*height)m28X4X3.9

    6 - Cutting system
    A. ModalityHydraulic cutting
    B. Design featureafter cutting system design in the forming machine, the cutting Length can be set.


    7 - Run-out table
    Framework: Platform typewithout power


    8 - Electrical control system
    1-The whole line adopts PLC control, LCD touch screen display and man-machine interface software. (Interaction between workers and PLC. )
    The operator can do the following
    The setting program (PLC)
    Monitoring the control process,
    Modify the control parameters,
    The length of the workpiece digital setting,
    The length of the workpiece adjusting.
    Running state real-time monitoring equipment and fault indication.


    2- Mode of operation: Manual / auto two. With manual, automatic switching function: In the manual mode, can be stand-alone operation, convenient repair; In the automatic mode, all production and operation, the start up sequence; Along with the emergency stop button, easy to handle emergencies, to ensure the safety of equipment and personnel.


    Guarantee:


    l Engineer will give free training lessons to labors in buyer’s factory.


    l The Buyer will buy the round-trip air ticket for Engineer if visa application is approved.

    The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals,

    accommodation and allowance of USD80 for engineer.


    l During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will

    provide the buyer spare parts at cost price.


    l We will charge the buyer cost price of spare parts beyond one year and provide long-term

    technical guide.


    SEMI-AUTO FIRE DAMPER ACTUATOR:


    Size: 123x159

    Feature: DC24V electromagnet turn off damper automatically. Torque: 10Nm

    temperature sensor moves to turns off and outputs signal. Voltage DC24V

    manual turn off damper, manual reset. manual reset. Micro switch contact rating: AC220V.3A

    output turnoff signal and interlock control signal. electromagnet DC24V.0.8A


    FULL-AUTOMATIC FIRE DAMPER ACTUATOR:


    Size: 140x180.4

    Feature: DC24V electromagnet turn off damper automatically. Torque: 10Nm

    temperature sensor moves to turns off and outputs signal. Voltage DC24V

    manual turn off damper, manual reset. manual reset. Micro switch contact rating: AC220V.3A

    output turnoff signal and interlock control signal. electromagnet DC24V.0.8A


    5. Product Pictures
