    Motorized Valves Rolling Shutter Strip Forming Machine 0.5-1.5mm Galvanized Steel

    HVAC System Fire Frame Roll forming Line production

    1, Production Forming process

    De-coiler—servo feeding—gap and cut off mould—forming ---collection table


    2, Equipment composing parts

    Equipment is composed of de-coiler ,feed system ,gap and cut off , forming machine,collection table ,electric control system , etc.


    3, Technical parameter of equipment main parts


    Structure and performance of machine

    Processing


    Passive De-coiler---Leveler---Servo feeder,Punching---Forming---cutting--Collection

    Main structure and performance of machine

    De-coiler Technical data

    Width of material sheet:100~300mm;;Thickness of material sheet:2.5mm;

    Inner diameter: φ508mm Range of expanding: ф480-520 mm

    Maximum outer diameter: φ1200mm, loading: ≤3T


    Leveler

    Working roller: Nine rollers type leveling machine

    Feature of structure: after the quenching and tempering, chrome-plating processing, the rigidity, surface roughness of the roller etc. are all enhance greatly; It is composed by the clamping roller and the leveling roller, the clamping roller may the independent control, the leveler has one pair of horizontal guide roller and two pairs of vertical guider roller and easy to adjust by hand wheel.


    Main forming machine

    Forming stations:18stations(roller)

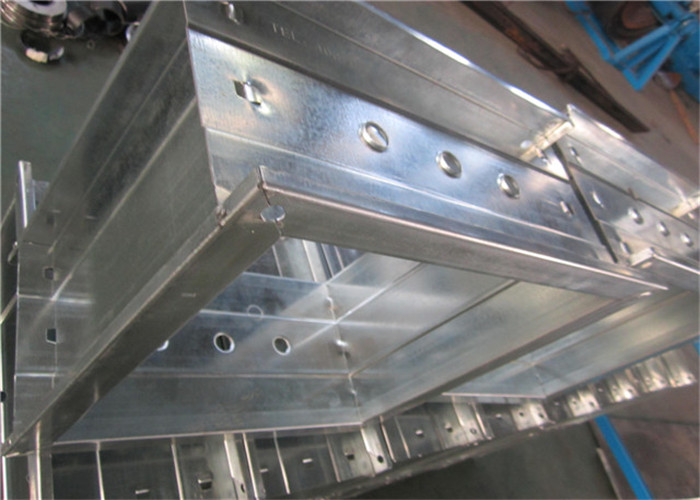

    Type of profile(as photos)

    Forming frame:Gantry type

    Max. Feeding width:≤300㎜

    Max. Feeding thickness:2.5mm

    Roller axis:φ70 mm

    Material of the roller:Gcr15,quenching treatment,HRC58-62°

    Main drive motor:22kw frequency motor drive


    Cutting device

    Structure:hydraulic cutting blade


    Collection table

    Structure:Roller type with no power



    NO.

    Project

    Unit

    parameters

    Remark

    1

    Material
    typeMild steel Galvanized sheet
    Strength of material sheetMap≥350
    Thickness of material sheetmm0.8~1.5
    2Size of productionmm
    Reference the picture
    3Production speedm/min6~8
    4Material of rollerGCr quenching treatment
    5Drive typeGear box
    6PowerkwAbout 34
    7Electric control systemPLC variable frequency control
    8Dimensions(Length*width*height)m28X4X3.9
