    Gear Driving Rolling Shutter Strip Forming Machine 6~8m/min Galvanized Steel

    Auto Fire Damper Shutter Frame Blade Louver Roll Forming Machine


    1, Structure of equipment

    This line is composed of de-coiler, punching, forming machine, cutting system, electric control system, etc.

    2, Equipment composing parts
    Equipment is composed of de-coiler, feed system, gap and cut off, forming machine, collection table, electric control system, etc.

    3, Technical parameter of equipment main parts

    3.1, Auto-decoiler
    A, Load capacity: 2 T
    B, Inner diameter of coil: 490-510mm
    Outer diameter≤ 1200mm

    3.2. Servo feed and punching unfilled corner parts
    A, Servo motor: Used Mitsubishi Servo motor, power: 1.0kw
    B, Punching unfilled corner die: 4 pillars punching die
    C, Material of punching die: Cr12. Quenching treatment

    3.3Feeding:
    Power 0.37kw

    3, 4Forming machine
    A, Forming frame
    B, Material of forming mould: GCr15, quenching treatment: Rigidity: HRC56-62º
    C, Motor: 7.5kw frequency conversion engine

    4, Electric control: PLC system

    The operator can do the following
    · The setting program (PLC)
    · Monitoring the control process,
    · Modify the control parameters,
    · The length of the workpiece digital setting,
    · The length of the workpiece adjusting.
    · Running state real-time monitoring equipment and fault indication.


    2- Mode of operation: manual / auto two. With manual, automatic switching function: in the manual mode, can be stand-alone operation, convenient repair; in the automatic mode, all production and operation, the start up sequence; along with the emergency stop button, easy to handle emergencies, to ensure the safety of equipment and personnel


    Main Parameter


    NO.

    Project

    Unit

    parameters

    Remark

    1

    Material
    typeMild steel,Galvanized sheet
    Strengthof material sheetMap≥350
    Thickness of material sheetmm0.8~1.5

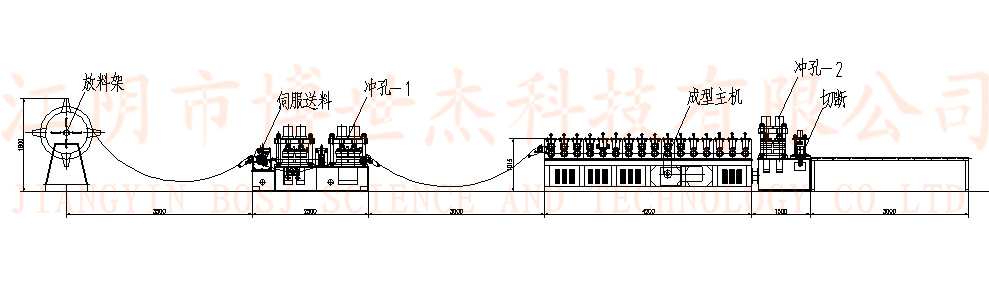

    2Size of productionmmReference the picture
    3Production speedm/min6~8
    4Material of rollerGCr quenching treatment
    5Drive typeGear box
    6PowerkwAbout 34
    7Electric control systemPLC variable frequency control
    8Dimensions(Length*width*height)m28X4X3.9
