Unistruct Solar Stand C Channel Roll Forming Machine
1. Unistruct Product Drawing
UniStrut Channel Detailed Specification Information:
High quality & reasonable Price, no need welding and punching, can
use repeatedly, wide usage range, flexible for installation.
1. Standard thickness: 1.5mm, 2mm, 2.5mm,2.75mm, 3.0mm
2. Standard length: 2440mm, 3000mm, 5800mm, 6000mm and customized
3. Standard size: 41*21, 41*25, 41*41,41*62,41*72,41*82, back to
back, 41*41.41*62,41*123 and so on
Other sizes be produced according to customer’s drawing.
UniStrut Channel Performance:
- convenient in construction and save much time and labor.
- light and cheap.
- high mechanical strength.
- various kinds of fittings can make up of many combinations also for
sale.
- attractive in appearance.
Working Material:
Q235B Steel (Chinese standard steel), SS304, SS316 & SS316L
Steel Surface Finish:
- Electro zinc plated
- Powder coated
- Hot Dipped Galvanized
- Electrolytic Polishing
Application
- Almost used for combinations of steel struncutre,column and beam.
Advantage
- Light and good looking
- Be cut and fixed with less time
- High loading
- Be made to any combinations for cable tray and pipe laying
2. Unistruct Normal Sizes:41X21mm/41X41mm/41X61mm/41X72mm or other
sizes required by your actual usage.
BOSJ offer sample design,or you can offer your sizes.We will offer
you the suitable technical proposal and machine structure.
3. Roll Forming Machine Main technical parameters
4. Production Machine General Working Condition
Area of production line: length45m x width 3.5m x height 5m
Feeding direction: from left side to right side
Power: 380V, 50Hz, 3 phase
Pneumatic station: pressure 0-0.6MPa.,0.5m3/min.
Hydraulic oil: 46# Hydraulic oil
Gear oil: 18# gear oil
5. Unistruct Roll Forming Machine Technical parameters
Width of material sheet:≤200 mm
Thickness of material sheet: 0,95 mm up to 1,55 mm
Material of sheet:Galvanized Steel,etc
Line production speed:15-20m/min(including
punching/forming/cutting)
Length of the work piece:3000mm-6000mm.
Total Power: 48.2 KW.
6. Production Line Component
Equipment part list of automatic U type auto punching/roll forming
machine
| No. | Name | Type | Quant. | Power of motor (KW) |
| 1 | Passive Decoiler | MT-300 | 1 set | |
| 2 | Leveler | HS-300 | 1 set | 3 |
| 3 | Servo-feeder | NCF-300 | 1 set | 2.2 |
| 4 | JF21-80 Punching machine | YANGLI GROUP | 1 set | 7.5 |
| 5 | Punching mould | | 1 set | |
| 6 | Roll forming machine | Gantry gearbox | 1 set | 18.5X2 |
| 7 | Flying Hydraulic cutting | | 1 set | 5.5 |
| 8 | Run-out table | SL-300X4000 | 1 set | |
| 9 | Electric control system | | 1 set | |

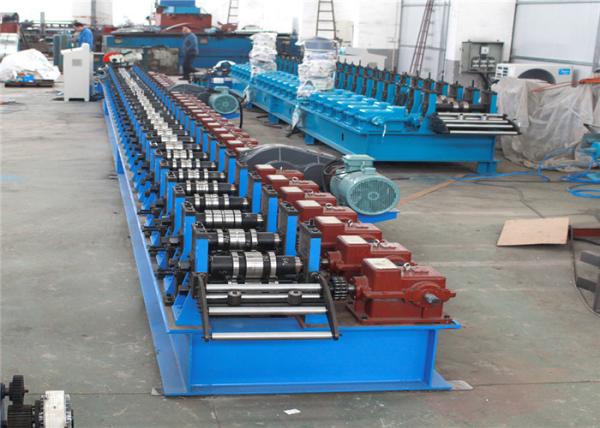

7. Main Machine Technical parameter
Main forming machine
Type:GY160
Forming stations:29stations(roller)
Forming machine:U channel
Forming frame:Dragon-type,gearbox drive
Max. Feeding width:≤300mm
Max. Feeding thickness:1.55mm
Roller axis:φ70 mm,shaft material:#45 quenching treatment
Material of the roller:Cr12,quenching treatment,HRC58-62°Main drive
motor:22KW frequency motor drive
| ,NO. | Name | unit | parameter | remark |
1 | materials | Type | | Mild steel galvanized sheet | |
| Plate strength | | ≥350 | |
| Plate thickness | mm | 1.5~2.5 | |
| 2 | specification | mm |
See the picture | |
| 3 | speed | m/min | 6~8 | |
| 4 | Material of the roller | | GCr15 Hardening treatment | |
| 5 | drive type | | Gear box | |
| 6 | power | kw | About40 | |
| 7 | Electrical control system | | PCL frequency control | |
| 8 | Size(lengthXwidthXheight) | m | 35X4X3.9 | |
8. Electric Control System
Full line is controlled by PLC control system with touch screen
operation to achieve the human and PLC interactive. The operator
can monitor the setting program (programmable control) and modify
the parameter to control the line. Also can check the running
status, parameter and error indication etc...
Operation type: manual /auto two type switch. In manual position:
can run the each part of the machine. In auto position: can run the
full line. The emergency stop ensures the safe of the equipment and
operator.
Machine side is equipped with the manual operation control panel
for convenient worker to operate;
