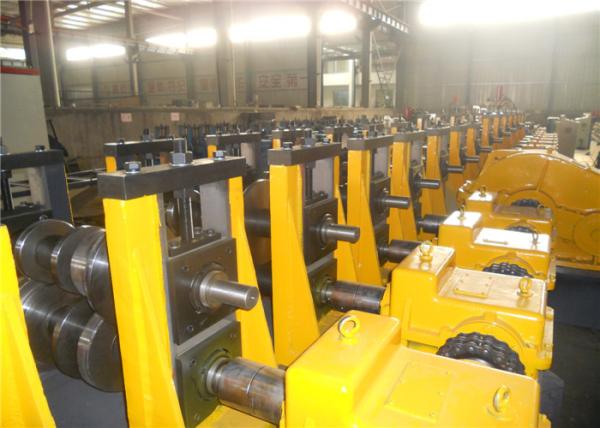

Unistruct Solar Stand C Channel Roll Forming Machine
Main technical parameters
1. General structure of equipment
Area of production line: length45m x width 3.5m x height 5m
Feeding direction: from left side to right side
Power: 380V, 50Hz, 3 phase
Pneumatic station: pressure 0-0.6MPa.,0.5m3/min.
Hydraulic oil: 46# Hydraulic oil
Gear oil: 18# gear oil
2. Technical parameters of machine
Width of material sheet:≤200 mm
Thickness of material sheet: 0,95 mm up to 1,55 mm
Material of sheet:Galvanized Steel,etc
Line production speed:15-20m/min(including
punching/forming/cutting)
Length of the work piece:3000mm-6000mm.
Total Power: 48.2 KW.
3. Product range
BOSJ offer sample design,or you can offer your sizes.
Main Machine Technical parameter
| ,NO. | Name | unit | parameter | remark |
1 | materials | Type | | Mild steel galvanized sheet | |
| Plate strength | | ≥350 | |
| Plate thickness | mm | 1.5~2.5 | |
| 2 | specification | mm |
See the picture | |
| 3 | speed | m/min | 6~8 | |
| 4 | Material of the roller | | GCr15 Hardening treatment | |
| 5 | drive type | | Gear box | |
| 6 | power | kw | About40 | |
| 7 | Electrical control system | | PCL frequency control | |
| 8 | Size(lengthXwidthXheight) | m | 35X4X3.9 | |
PLC Control System
a. Full line is controlled by PLC control system with touch screen
operation to achieve the human and PLC interactive. The operator
can monitor the setting program (programmable control) and modify
the parameter to control the line. Also can check the running
status, parameter and error indication etc...
b. Operation type: manual /auto two type switch. In manual
position: can run
the each part of the machine. In auto position: can run the full
line. The
emergency stop ensures the safe of the equipment and operator.
c. Machine side is equipped with the manual operation control panel
for
convenient worker to operate;
Cable Tay Cover
BOSJ can design cable tray cover according to your requirment.
Or you can offer us your sample sizes or pictures,then BOSJ team
will offer you more details.
