BOSJ Machine Range

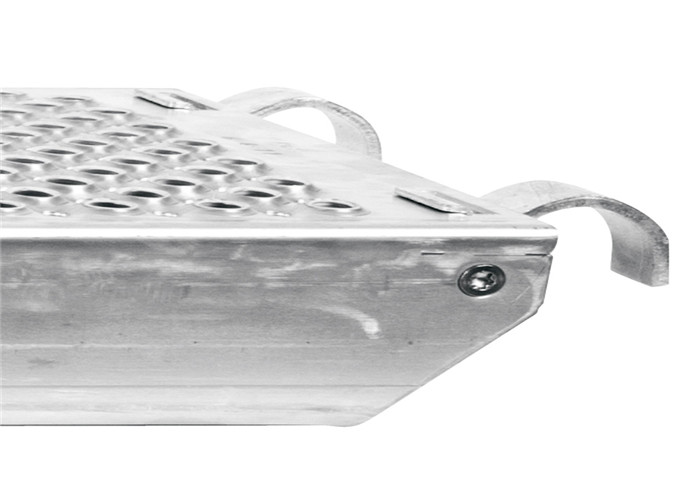

Scaffoling Plank End cap and Stiffiener Production line
Scaffoling Plank End cap and Stiffiener Production line consists of decoiler,leveler,servo feeder,punching press and punching mould,it can punch in one time.
Character
Fast Production Speed
High Automation



Scaffolding Ledger Welding Machine
Machine Pictures
This machine is specially used for scaffoling ledger auto welding,after chaning clamps,it can be usbed in auto welding for Four-way Ring system,disk plate,cuplock,etc.
This machine consists of two sets cogas protective welder and special machine.

Connection Colar Machine

Working connection colar length:350mm
Working Punching Diameter and Thickness:Φ12mm×t2.5- t3mm
Working Connection Collar Diameter:PipeΦ42/Φ52mm
Punching Distance:2-Φ12mm Punching diatance 100mm
Production Speed:15 seconds/piece
Feeding Type:manual feeding,mould auto
Shrinking Size:customized
Shrinking Size:customized
Machine body:length 1200mmwidth1000mm height1800mm
Total weight:1T

Scaffolding Plank Online stiching Machine
Machine Picture
Function
we develops a total new auto equipment with high production efficiency,this equipment is online stiching which used in the scaffolding plank roll forming machine
It solves the problems which the slow manual punching and wrong holes positions.
Full Auto Scaffolding Plank Roll Forming Machine
Technical Parameter

Scaffolding Plank Welding Machine--Robot
It takes Yaskawa/OTC/ABB/KUKA and other famous welding robots(the brand is optional by customer) and two positioner.
The clamping apparatus finish spot welding and continous welding for end cap and stiffiners.
it consists of X-axis, Y-axis, Z-axis,rotation axis and R axis,the mechnical arm can move from left to righty,front to rear,up and down and rotary motion by servo control system,it immatches inverter control gas welding to complete all kinds of product lines,right angel and spot welding, it is an extremely ideal equipmeny for auto scaffolding plank welding.

Base Jack Auto Welding Machine

Machine

Structure:it consists of 21-30 sets electric drilling machines,it can drill in one time with servo pushing structure.The machine is auto feeding and collection material.


Scaffold Tube Two Edges Auto Welding Machine
It consists of 3 sets welding machine and one set special machine,it finishes auto round welding for tube/ disk plate and connect collar.

Full auto pipe cutting(saw cutting) device is suitable for different pipe thickness.Meanwhile,the raw material length can produce 12 meters.


Scaffolding Standing Tube Disk Welding Machine

welding after disk goes through the tube,auto round welding,auto collection,it is recycling production.No more workers.

Semi auto Scaffolding Standing Tube Disk Welding Machine,it is manual feeding disk and spot welding,the machine can meet the round welding automatically with high efficiency.
Scaffolding Ledger Welding Machine


21~30 Multistation Steel Drilling Machine
Structure:it consists of 21-30 sets electric drilling machines,it can drill in one time with servo pushing structure.The machine is auto feeding and collection material.

Diagonal Brace End Shape:customized
Working Punching Diameter and Thickness:Φ17×τ2.5--τ3mm (customized)
Working Diagonal Brace Diameter:pipe Φ33/Φ42/Φ48 (customized)
Punching distance:Stiching holeΦ17mm----Galvanized diversion HoleΦ10mm.(customized)
Production Speed:15 seconds/pieces(diagonal brace length 1500mm)
Max Punching Distance:3500mm(customized)
Standard working diagonal brace length:1000mm----3500mm (customized)
Max servo feeder speed:45000mm/min
TFT human interface,the diagonal brace punching hole distance can be set at the interafce,it is accurate positioning by servo motor,
It is reset and automatically compensated for the error sizeit can store 0-30 working sizes.


Semi-Auto Diagonal Brace Forming Punching Machine
Structure:it consists of full auto hydraulic forming/punching machine and hydraulic pump.
Manual feeding,it can produce 2 pieces diagonal braces with forming and punching in one working process.

JIANGYIN BOSJ SCIENCE & TECHNOLOGY CO., LTD located in the Yangtz e Rive r Delta and the famous "China's first village" Jiangyin Huaxi Village. It is a professional manufacturer specializing in the developing and export of roll forming machine for metal roof tiles, wall sheets, C-shaped puline, Z-shaped purline, press brakes, highway guardrail and CNC plasma cutting machine. BOSJ has developed machinery and production methods to meet customers' increasing demand for profitability and new business opportunities.


BOSJ has a group of experienced senior engineers, technicians, they were from machinery, automatic control, power electronics, and other fields, and skilled workers ensure high quality products for customers with perfect quality management and testing systems. We're always able to meet your customized needs. From basic economical roll formers to the most complex, we fashion a solution to meet your company's production goals and budgets.


In line with enterprising spirit on 'sincerity originally" company, use CAD/CAM electromechanics integrated technology, in a conscientious and down-to-earth manner to devoted to new product new industrial research and development of new technology, it is accurate to regard time of fighting in time of price that the high-quality products are reasonable as, loyal service is very domestic and international every user.


Our products cover more than 20 provinces and cities in China and are also exported to Southeast Asia, the Middle East, African regions and North America.
