Main technical parameters

1. General structure of equipment

Area of production line: length18m x width 3.5m x height 5m

Feeding direction: from left to right

Power: 380V, 50Hz, 3 phase

Pneumatic station: pressure 0-0.6MPa.,0.5m³/min.

Hydraulic oil: 46# Hydraulic oil

Gear oil: 18# gear oil

2. Technical parameters of machine

Width of material sheet:≤250 mm

Thickness of material sheet: 2.0mm

Material of sheet:Low carbon,etc

Punching speed:8-12m/min

Length of the work piece:2500 mm

Total Power:36KW.

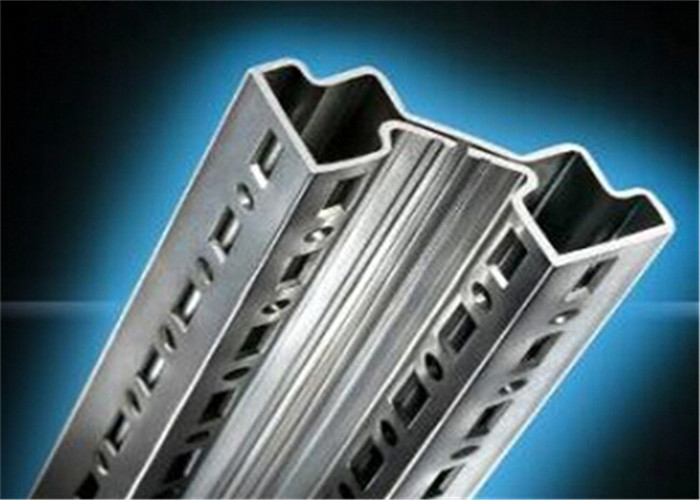

Electric Cabinet PRODUCT FEATURE

Dimensions:Width: 600 mm /Height: 1600 mm/Depth: 600 mm

Installation height for components:33 U

Number of doors:1

Weight/PU:61.5 kg

PRODUCT DESCRIPTION

Forming craft

De-coiler----Leveler/feeder----Continuous punching---Roll forming(welding)---Cutting-to-length---Collection

Equipment structure
This production line consist of de-coiler,leveler/feeder,Continuous punching,Roll forming,Cutting-to-length,Collection and electric control system,etc.

Bottom Continuous punching
Punching type:Four-column punching device
Punching mould material:Cr12

Roll Forming Machine
Forming stations:26 stations
Wall-frame structure or gantry type
Max feeding width:220mm

Roller axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw

Wall-frame structure or gantry type
Max feeding width:220mm

Roller axis diameter:¢60mm,,Material 40Cr
Roller material :GCr15,quenching treatment,Hardness HRC56-62º
Motor power:22kw
Fly-cutting device without bur

JIANGYIN BOSJ SCIENCE & TECHNOLOGY CO., LTD located in the Yangtz e Rive r Delta and the famous "China's first village" Jiangyin Huaxi Village. It is a professional manufacturer specializing in the developing and export of roll forming machine for metal roof tiles, wall sheets, C-shaped puline, Z-shaped purline, press brakes, highway guardrail and CNC plasma cutting machine. BOSJ has developed machinery and production methods to meet customers' increasing demand for profitability and new business opportunities.


BOSJ has a group of experienced senior engineers, technicians, they were from machinery, automatic control, power electronics, and other fields, and skilled workers ensure high quality products for customers with perfect quality management and testing systems. We're always able to meet your customized needs. From basic economical roll formers to the most complex, we fashion a solution to meet your company's production goals and budgets.


In line with enterprising spirit on 'sincerity originally" company, use CAD/CAM electromechanics integrated technology, in a conscientious and down-to-earth manner to devoted to new product new industrial research and development of new technology, it is accurate to regard time of fighting in time of price that the high-quality products are reasonable as, loyal service is very domestic and international every user.


Our products cover more than 20 provinces and cities in China and are also exported to Southeast Asia, the Middle East, African regions and North America.
